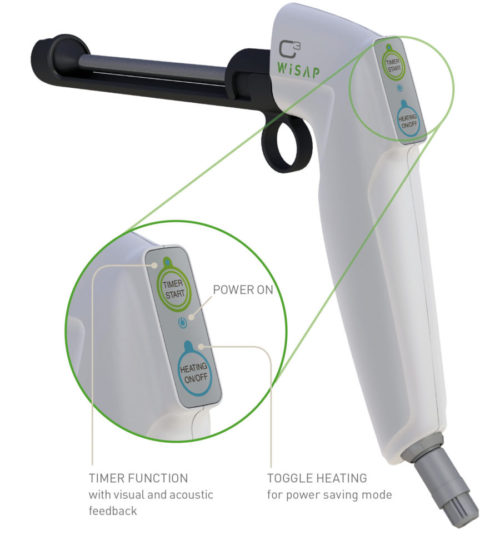

HLD DISINFECTION LED illumination   Heat protection Regardless of screening strategy, access to effective treatment for women with cervical pre-cancer is crucial. The C3 thermo coagulator is optimized for use in low-resource settings. It is independent of power grid and clinical infrastructure, it is handheld, mobile and easy to use.
C3 – THE MOBILE SOLUTION   Choice of power source

C3

C3 ECO4

Handle

Number of Probes

2

4

Probe material

Plastic and stainless steel

Plastic

Treatment numbers

approx. 400

approx. 150

Slider for heat protecion

Battery

Power supply

2 probes included

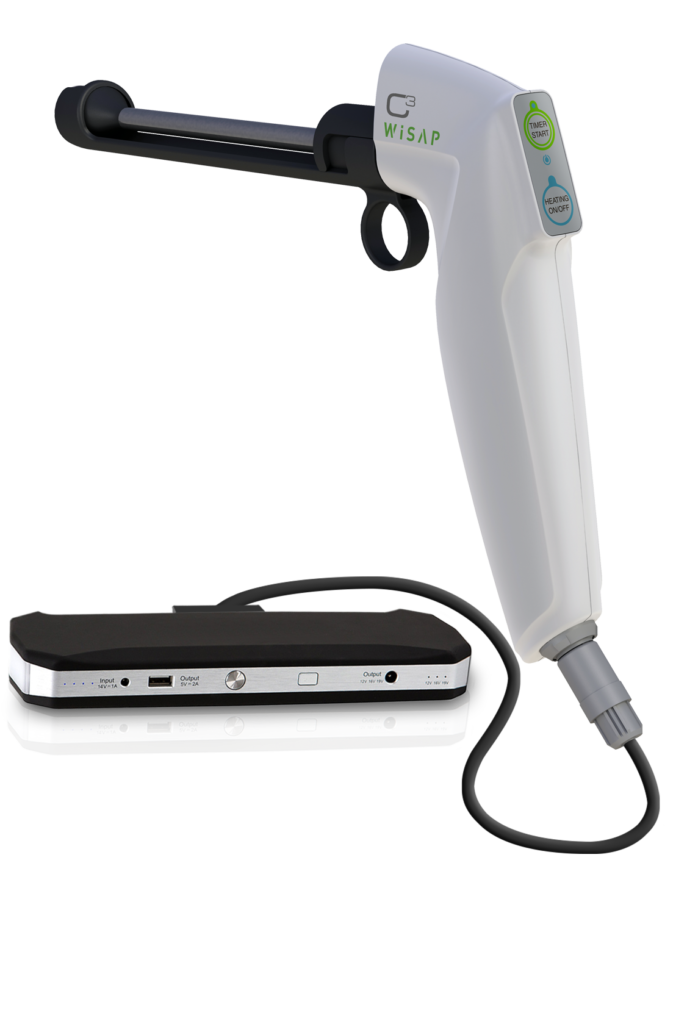

CHOICE OF POWER SOURCE

for stationary or mobile treatment

There are many LMIC countries that have recently enacted screening programs for cervical cancer; however, even the most effective screening program will fail if treatment is not accessible. The C3 can run on standard power grid for a reliable continuous treatment in an established setting but additionally offers the possibility to be connected to an external power-pack, which enables the device to go where treatment is really needed.

The novel device is portable and capable of being carried in a backpack to any remote area to provide lifesaving treatments. The battery pack offers enough power for 1 week of operation, accounting 20 treatments a day for 7 days running.

Slide WISAP-Bat-Solution MOBILE POWER SOURCE Battery Pack Single charge for 1 week of treatment (20/ day for 7 consecutive days) STATIONARY POWER SOURCE Power Grid Continuous operation MOBILE POWER SOURCE Battery Pack Single charge for 1 week of treatment (20/ day for 7 consecutive days) STATIONARY POWER SOURCE Power Grid Continuous operation

HEAT PROTECTION

for a safe entry and exit

The C3 offers a safety feature that protects the vagina and decreases the potential for pain. The vagina is highly enervated while the cervix is not, necessitating a feature that prevents the device from contacting the more vascular vaginal walls. In order to prevent the hot thermo-probe from coming into contact with the vaginal walls, the C3 has a HEAT PROTECTION in the shape of a slider, which does not conduct heat.

Slide WISAP-C3-Safemode WISAP-C3-Coagulator-Treat

LED ILLUMINATION

for a better visibility

The LED light is positioned on top of the thermo-probe so that no shadow is cast onto the cervix, which the operator is aiming for. The light intensity is specifically chosen so that no reflections on the speculum impair the operator by unwanted reflections.

Cold Coagulator Beleuchtung

HLD DISINFECTION

no autoclave is required

The most difficult part of bringing treatment to rural areas is the absence of clinical infrastructure. Additionally it is a sad coincidence that in the areas where HPV infections are mostly spread HIV is also spread. So when designing the C3 device, it was important to make sure that cross-contamination from patient to patient, but also dependency on clinical infrastructure is fully eliminated. Therefor the thermo-probe of our device can be disinfected using High Level Disinfectant (HLD). We have tested and proven in a laboratory that our disinfection cycle is fully capable of eliminating any contamination and ensuring safe use from patient to patient.

WISAP Sonde C3
PLAY VIDEO
